STAGE 3 TOPO 2.0 SYSTEM - TRANSIT AWD (2020+ SINGLE REAR WHEEL) by VAN COMPASS

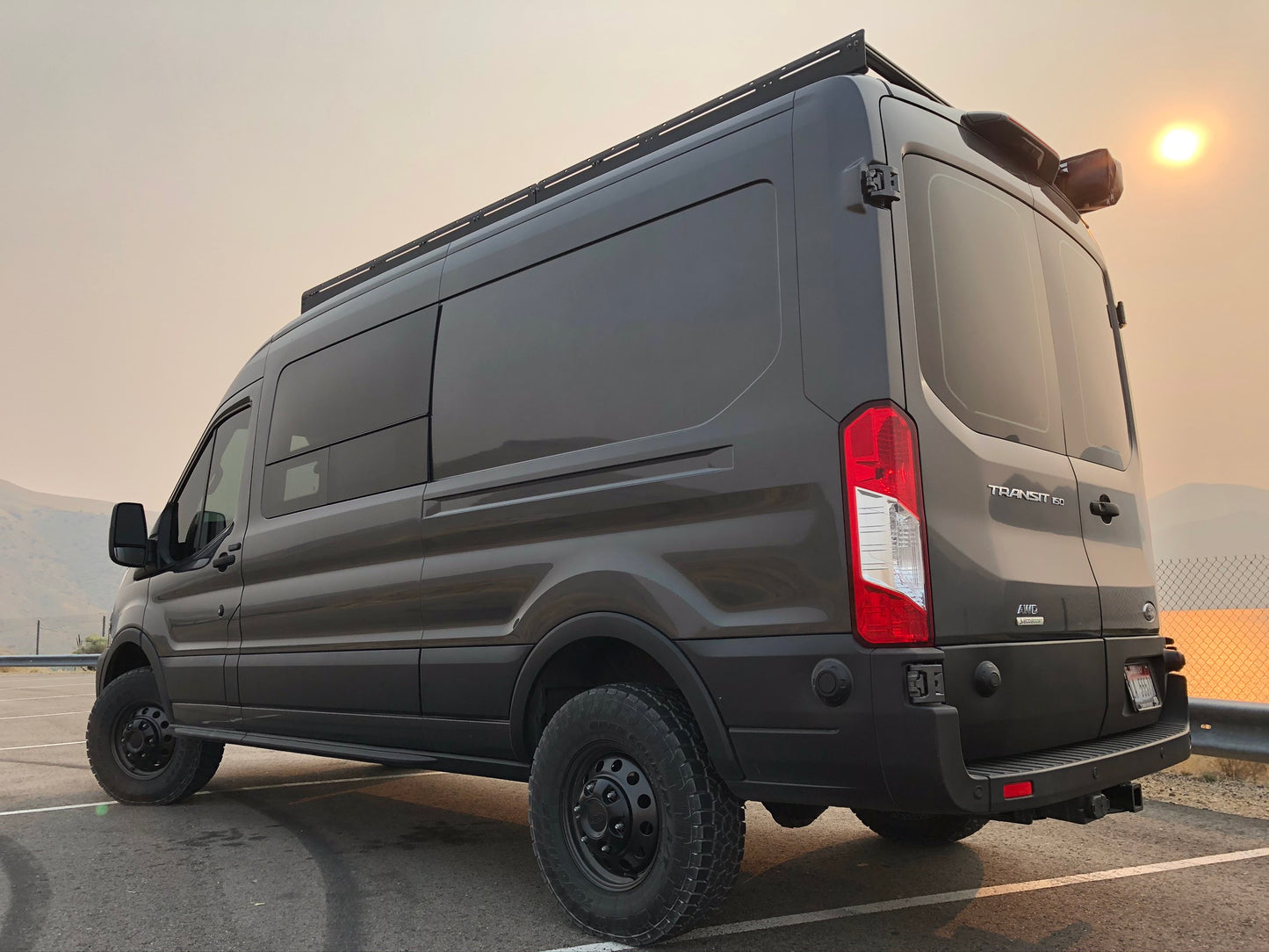

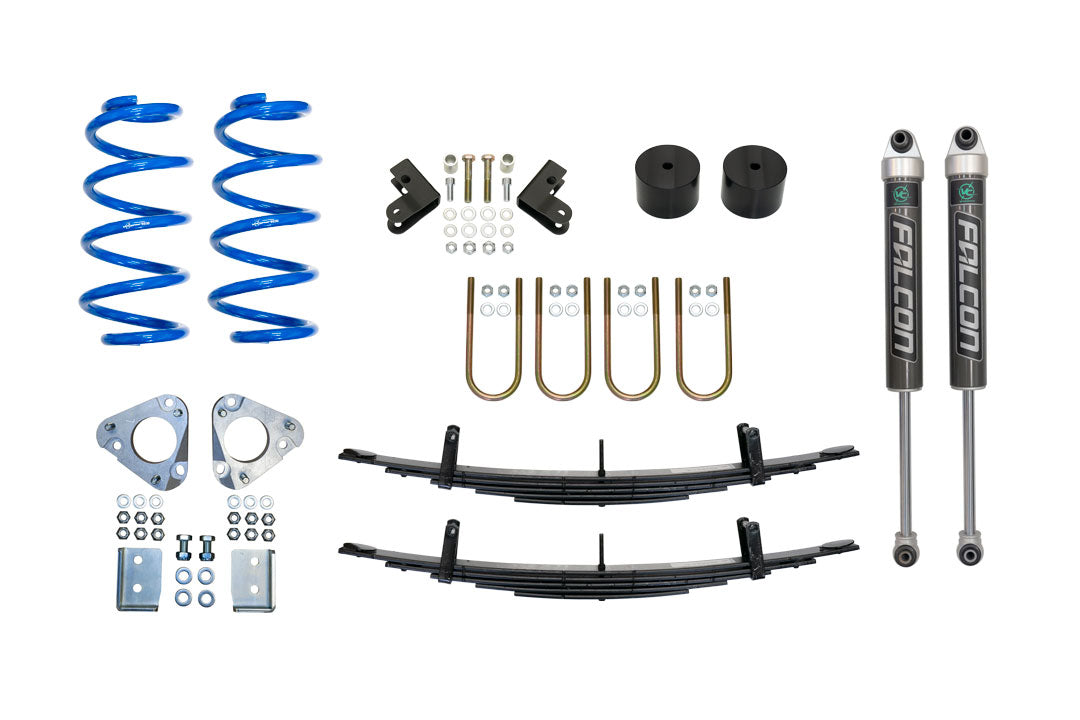

Improve the ride quality and stance of your 2020-Present Ford Transit AWD with the Stage 3 Topo 2.0 package. Our system achieves a true 2.0" of lift for improved ground clearance while maintaining factory alignment specifications. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020 AWD Transit platform. This kit is compatible with AWD Transit models from 2020-present, and fits all single rear wheel vans. The Stage 3 kit is designed specifically for built out camper vans or work vehicles that run at or near GVWR all the time. 8500lb vehicle weight and up.

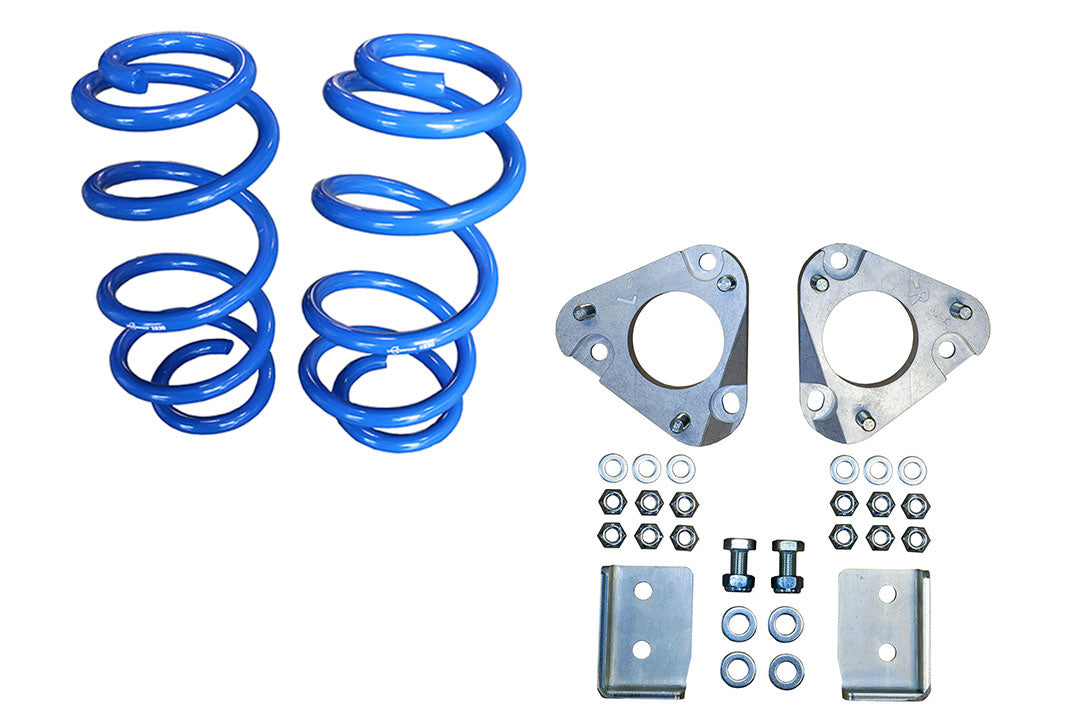

Our Topo Front Lift kit combines a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications, our tuned spring nets approximately 1.25" of lift with a corresponding increase in compression travel. The B6 strut is not included with AWD specific kits, it can bind the CV and cause premature boot failure.

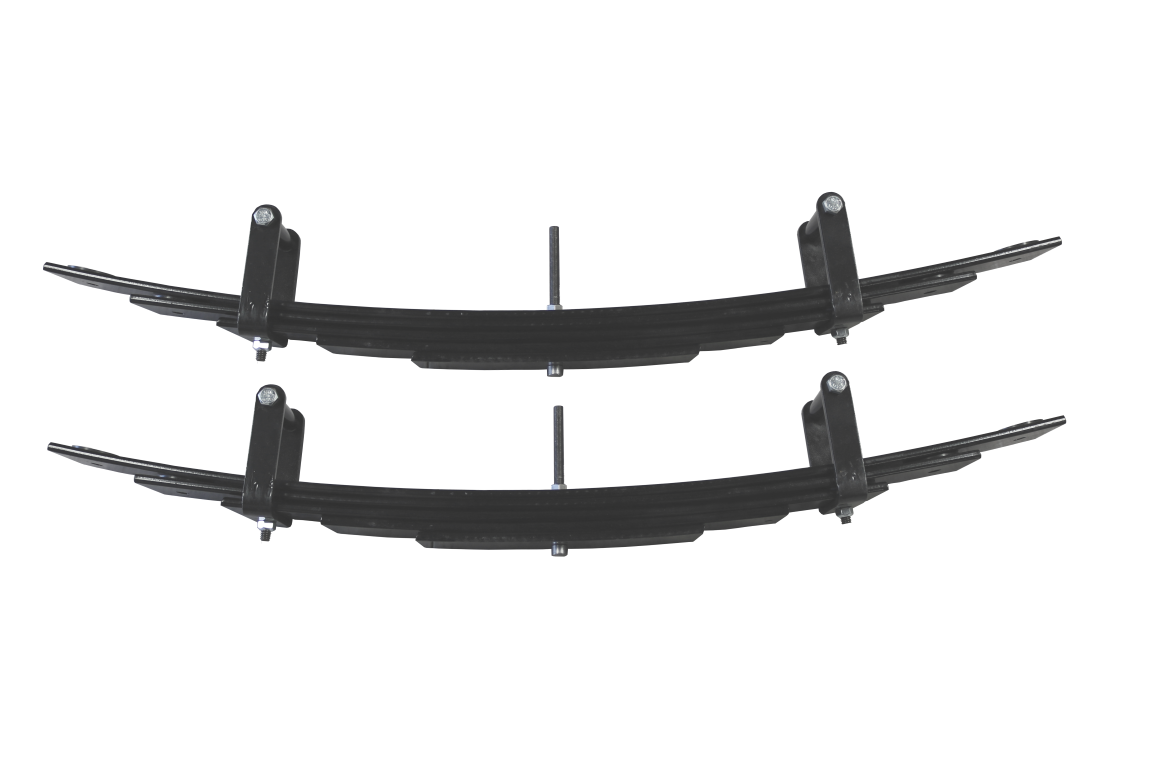

Rear lift is accomplished by our proven 5 leaf mini spring pack. This 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride.

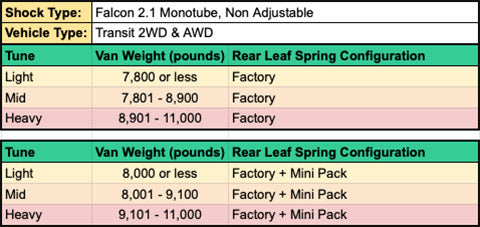

Rear Falcon 2.1 Monotube shocks are tuned to our specifications. These upgraded dampers feature a 2.35" piston that will smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced as well as the side to side sway or jostling over uneven surfaces. Our Rear Shock Relocation Brackets allow for increased ground clearance and move the vulnerable shaft of your shock out of harm's way.
