BAJA NORTE HIGH CLEARANCE REAR LOWER SHOCK BRACKETS - SPRINTER 2500 (2007-PRESENT) by VAN COMPASS

BAJA NORTE HIGH CLEARANCE REAR LOWER SHOCK BRACKETS - SPRINTER 2500 (2007-PRESENT) by VAN COMPASS

SKU:7225

Regular price $ 370.00 USD
Regular price Sale price $ 370.00 USD
Sale Sold out

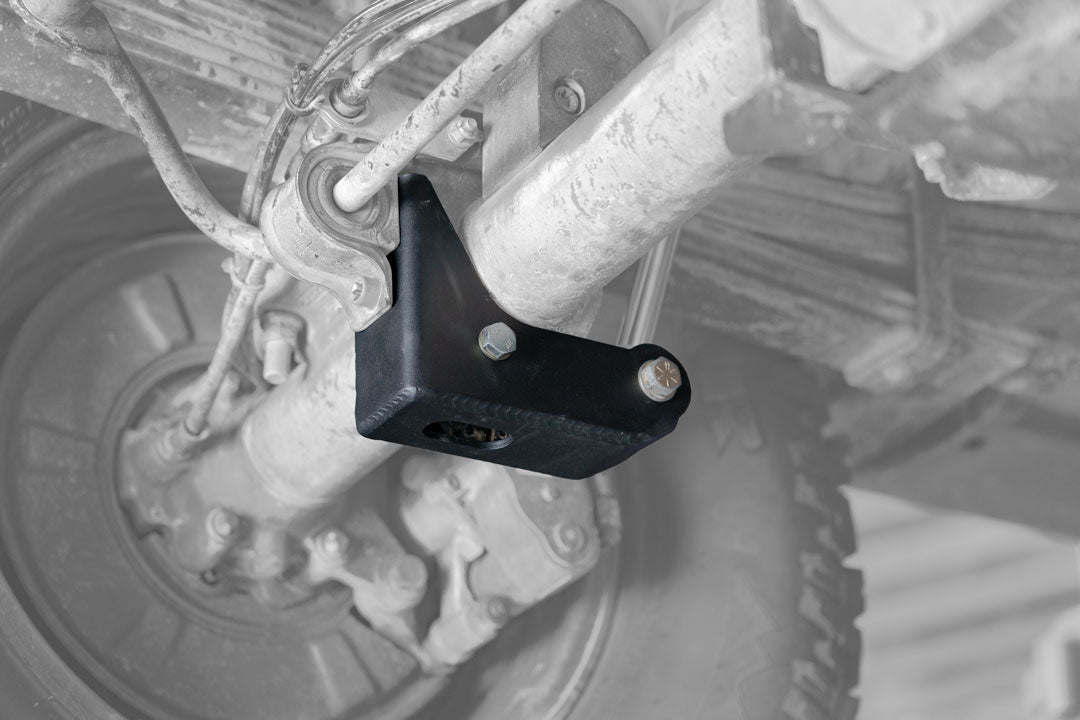

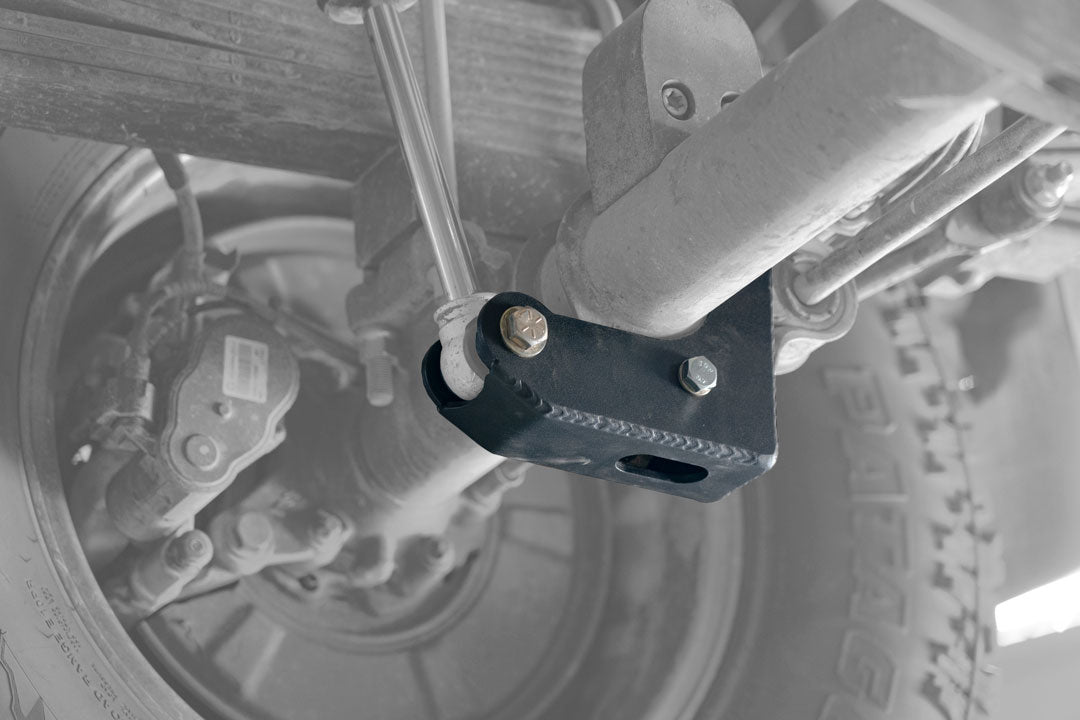

Our Baja Norte High Clearance Heavy Duty Rear shock brackets allow lifted Sprinter owners to realize futher ground clearance gains and an integrated skid protects the lower eyelet. Designed to wrap and reinforce the factory lower shock mount with laser cut and formed 3/16" steel, this bracket trims the low hanging factory design and relocates the shock eyelet 2" higher for a huge increase in clearance. For further peace of mind, we also upgrade the failure prone rear lower bump stop mount on the axle, which has a tendency to snap off on heavy vans that get used off road. ONLY COMPATIBLE WITH VAN COMPASS 2" LIFT KIT AND FALCON ADJUSTABLE SHOCKS.


View full details

Collapsible content

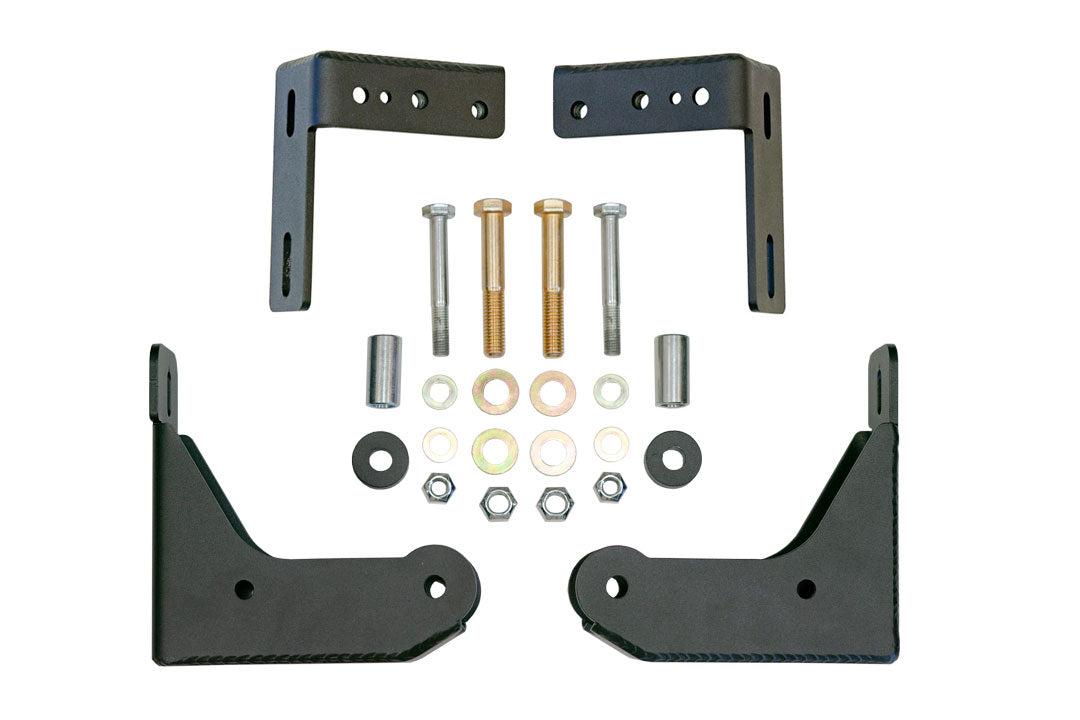

INCLUDED COMPONENTS

  • Baja Norte High Clearance, Heavy Duty Lower Shock brackets

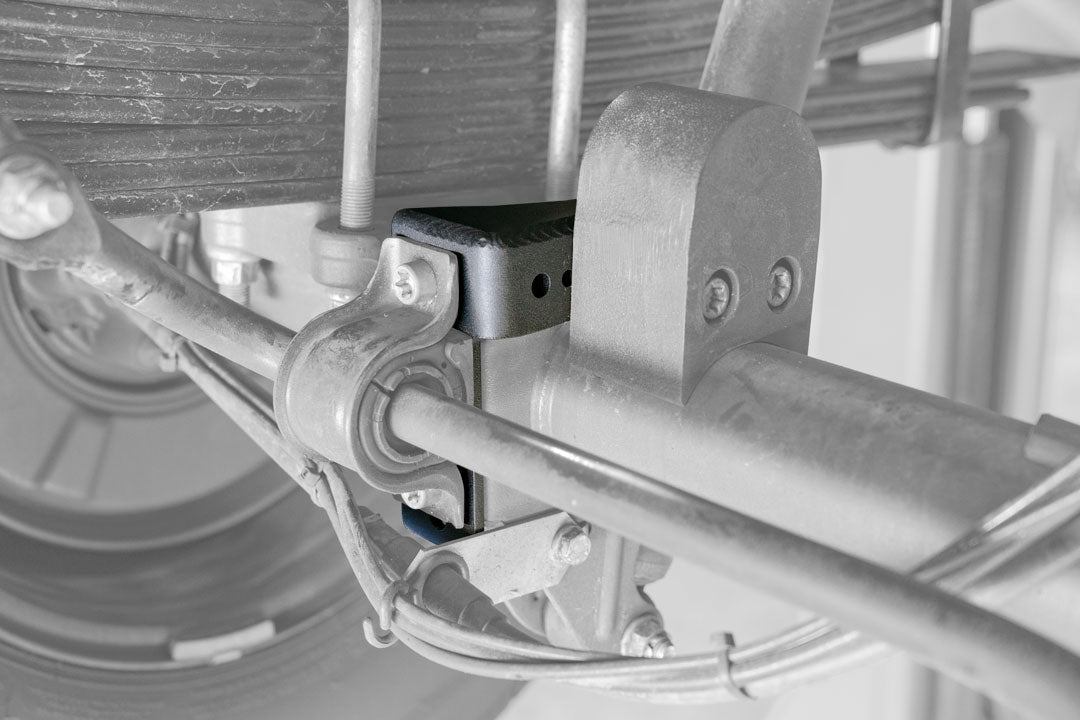

  • Heavy Duty Rear Lower Bump stop bracket
  • All necessary hardware

FITMENT GUIDE

MODEL: SPRINTER 2500

YEAR: 2007-PRESENT

DRIVE TYPE: 4X4, AWD, 2WD

NOTES: Requires 2" Van Compass lift kit be installed

NOTE: Not compatible with monotube shocks, must be used with Falcon 3.3 adjustable shocks. Collapsed length on monotube shocks is too long.

INSTRUCTIONS

  • 2007+ Sprinter Heavy Duty Lower shock bracket Installation instructions:
  • LABOR TIMES

    Recommended Shop Labor Time: 1.5 Hour
