ROCKER GUARDS - SPRINTER AWD (2023+ 144" WHEELBASE ONLY) by VAN COMPASS

ROCKER GUARDS - SPRINTER AWD (2023+ 144" WHEELBASE ONLY) by VAN COMPASS

SKU:4106

Regular price $ 2,250.00 USD
Regular price Sale price $ 2,250.00 USD
Sale Sold out

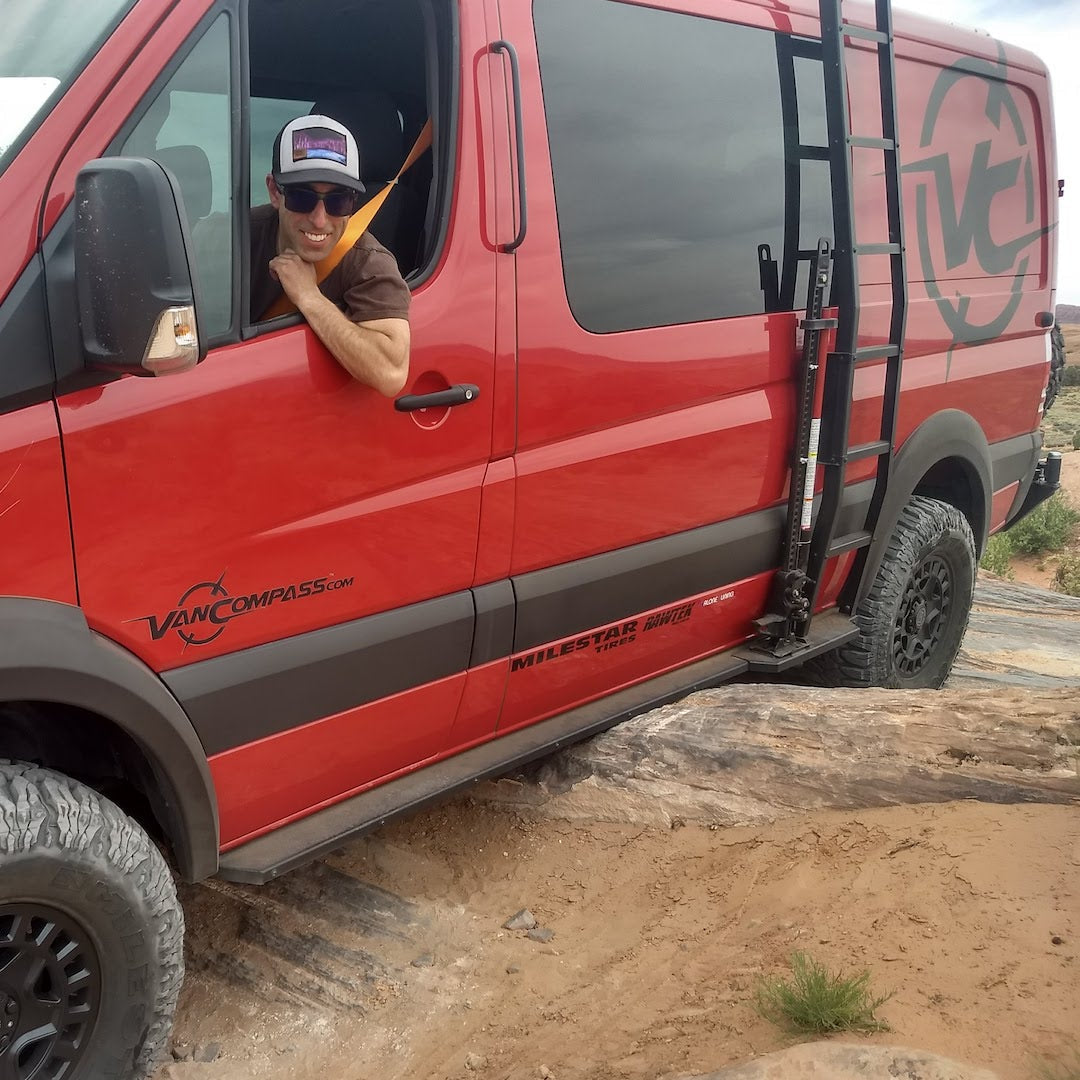

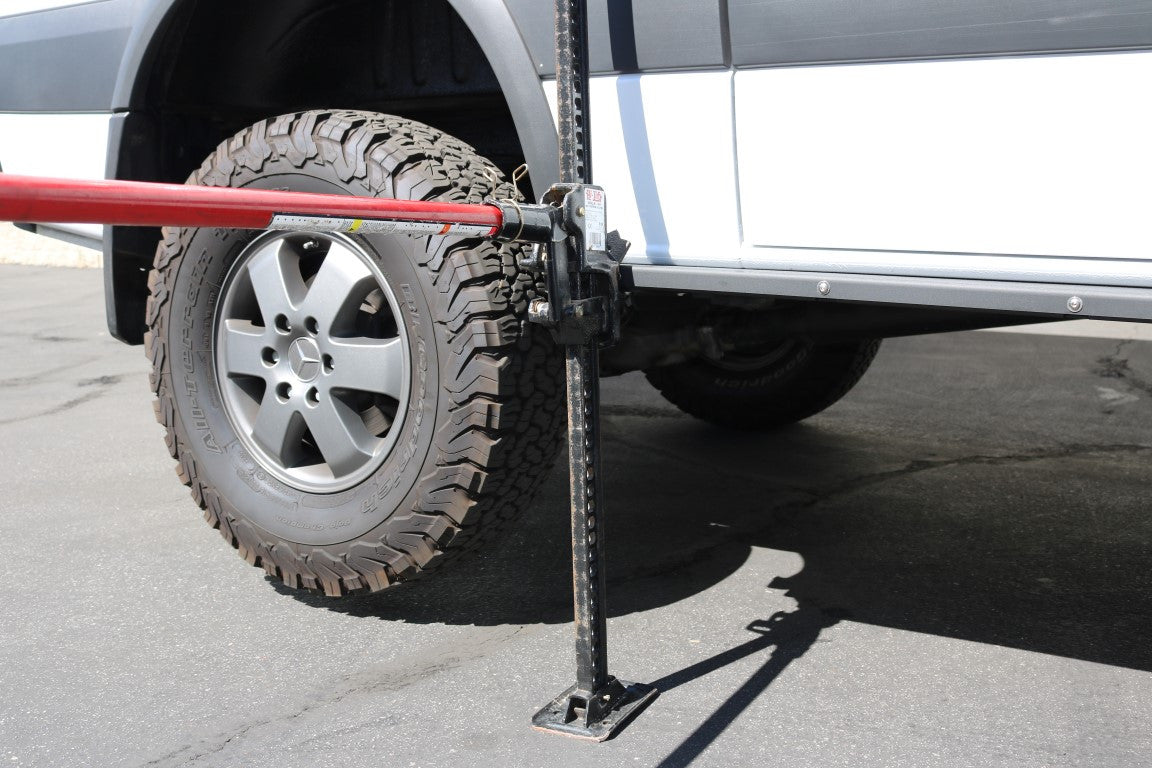

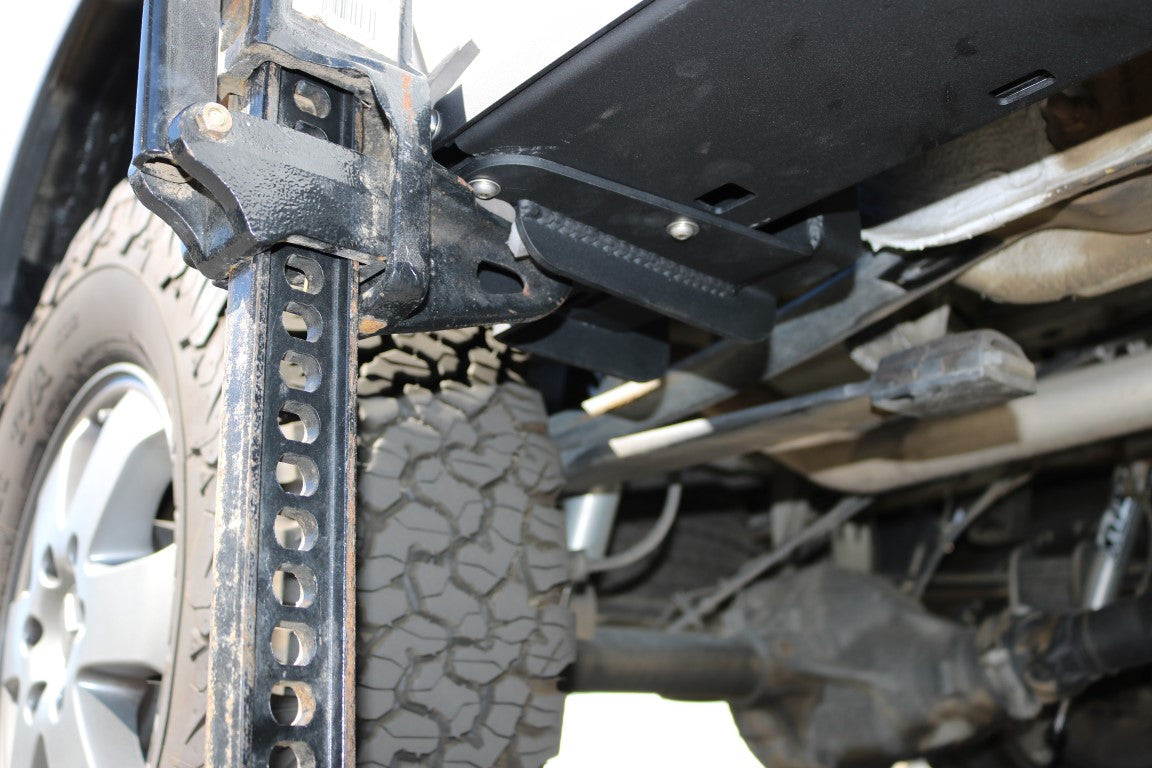

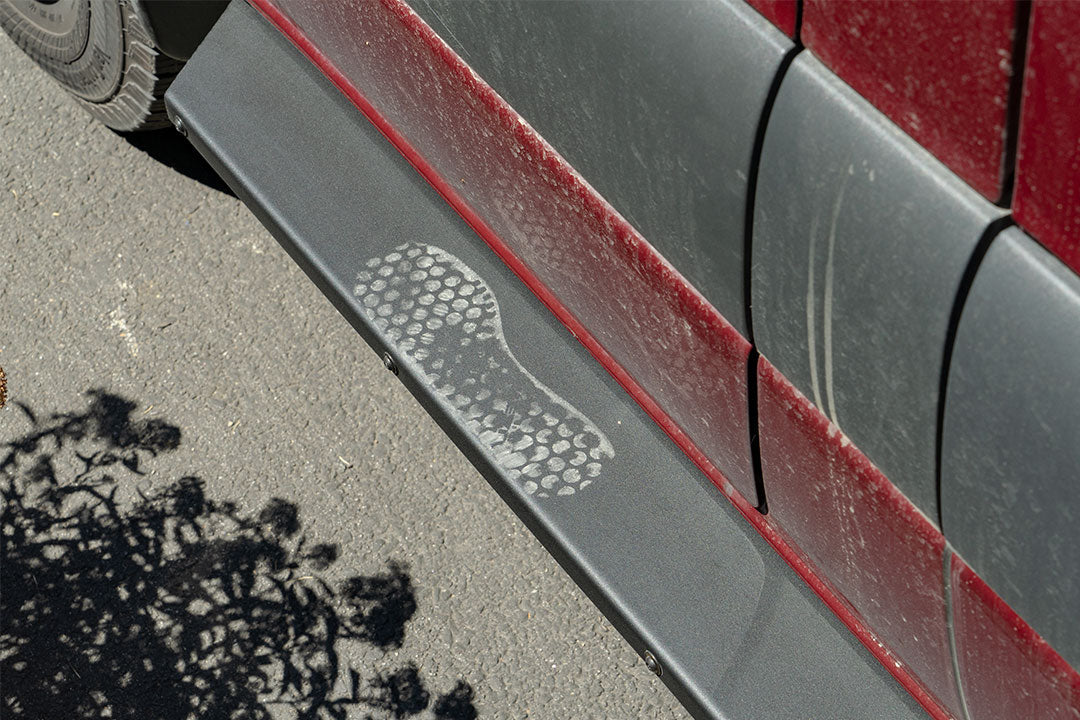

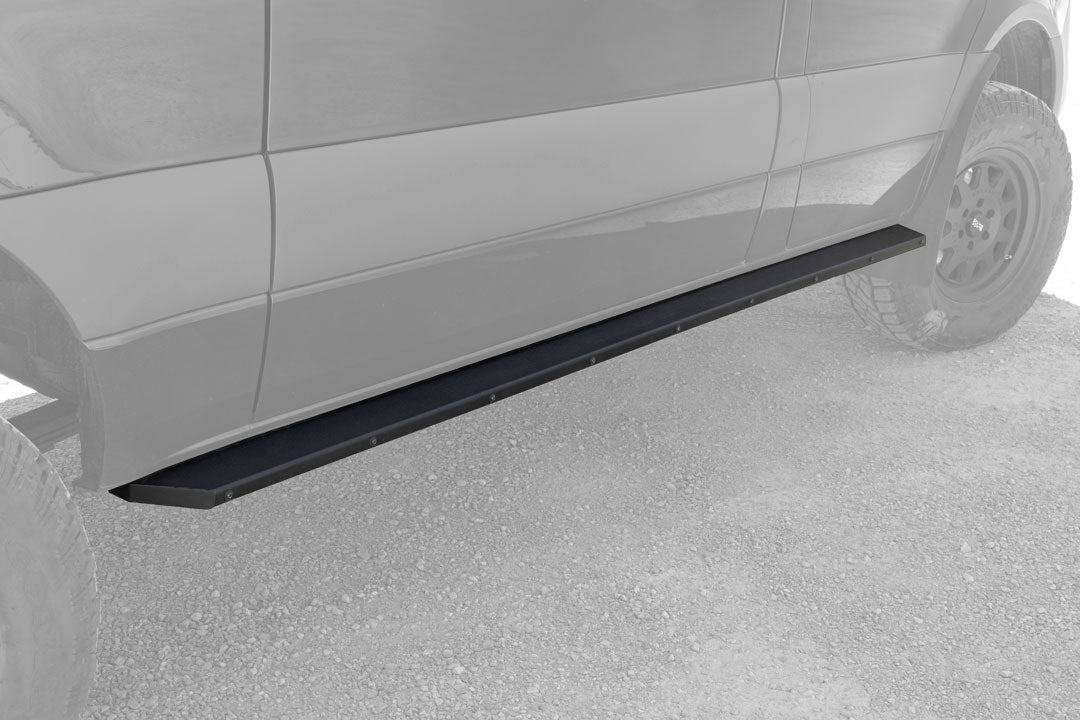

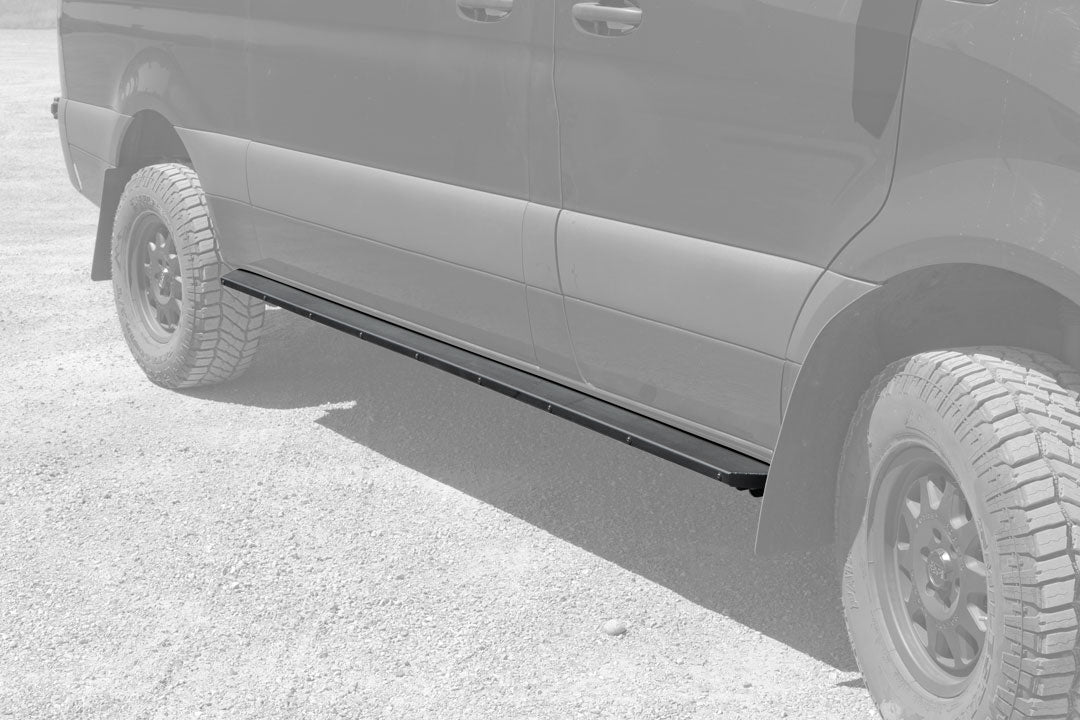

More than just a step! Add functional protection, chassis rigidity and ease of access to your 144" wheelbase AWD Sprinter in sleek style with a set of Van Compass Rocker Guards. Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient. This robust design offers excellent body protection and adds easy to access vehicle lifting points. Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely.

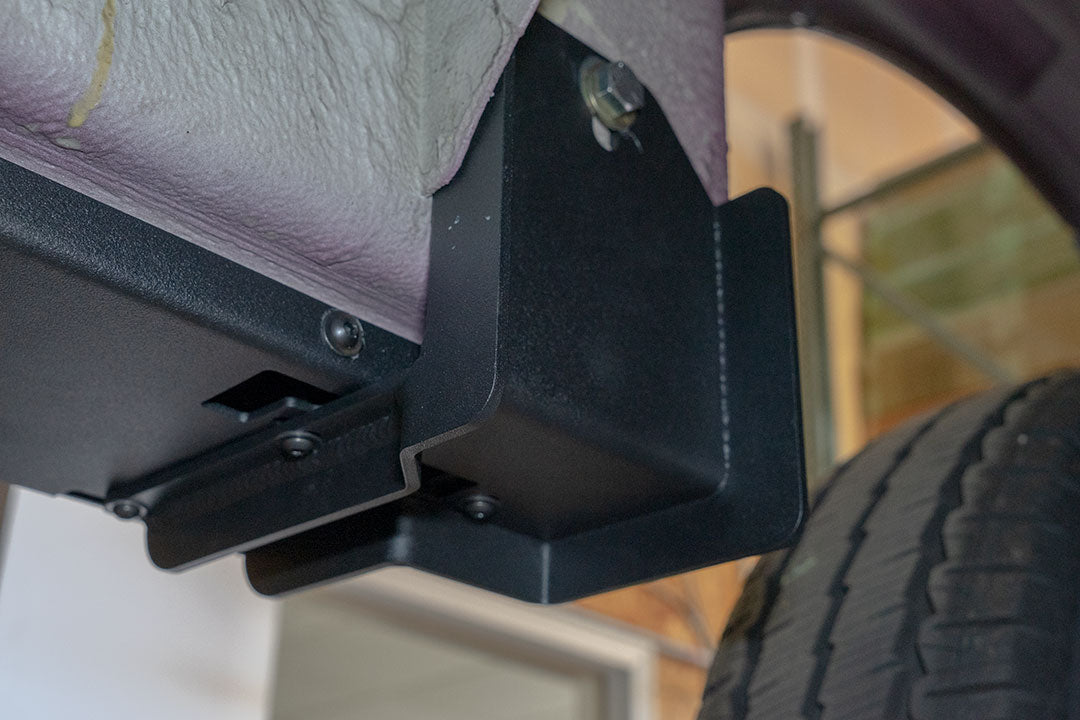

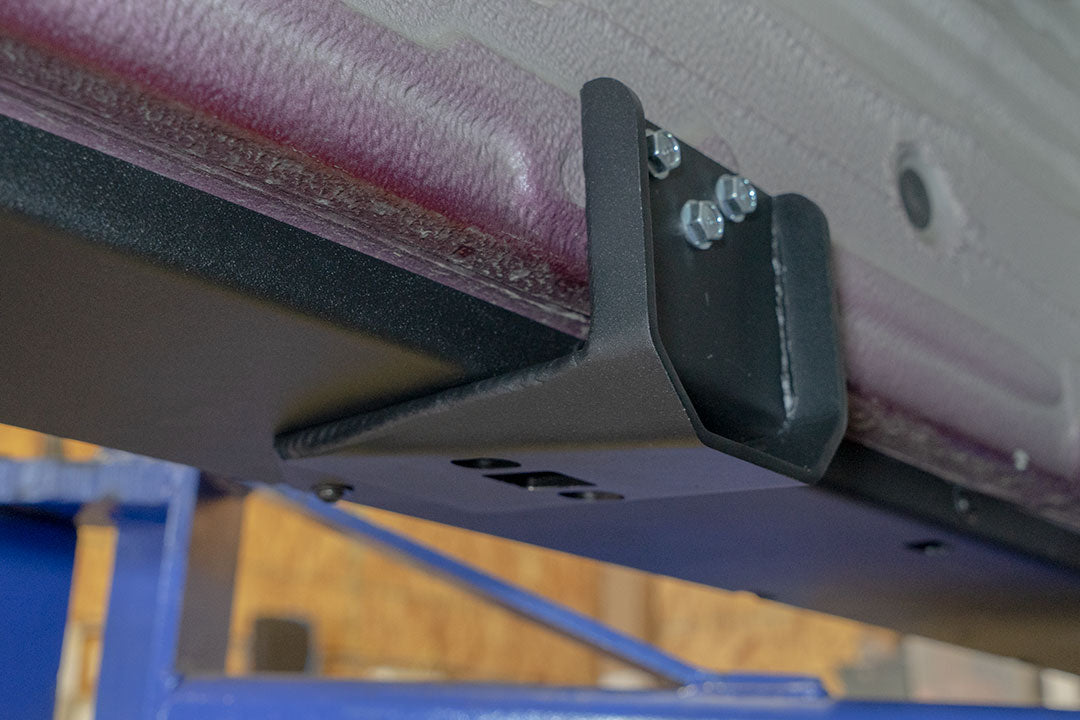

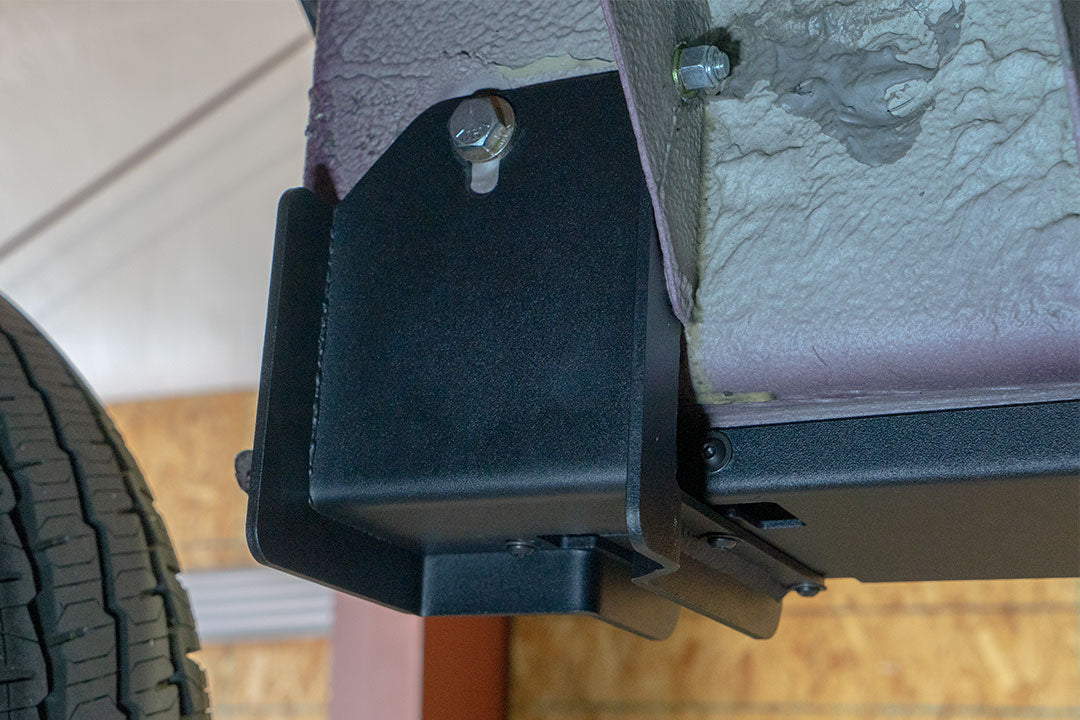

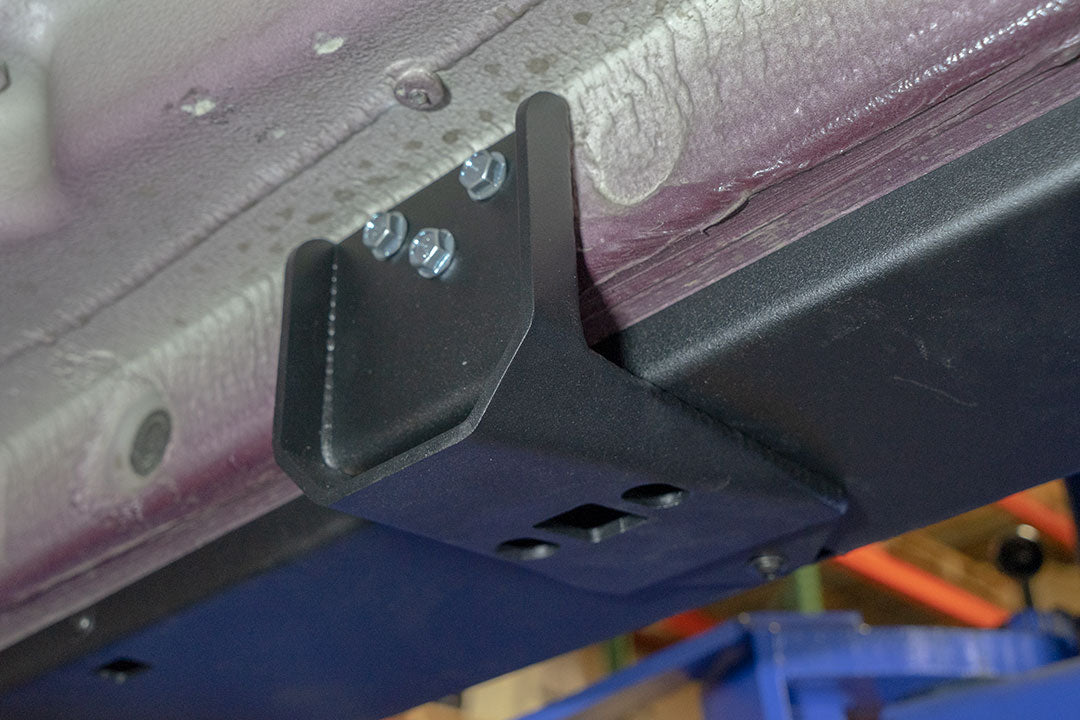

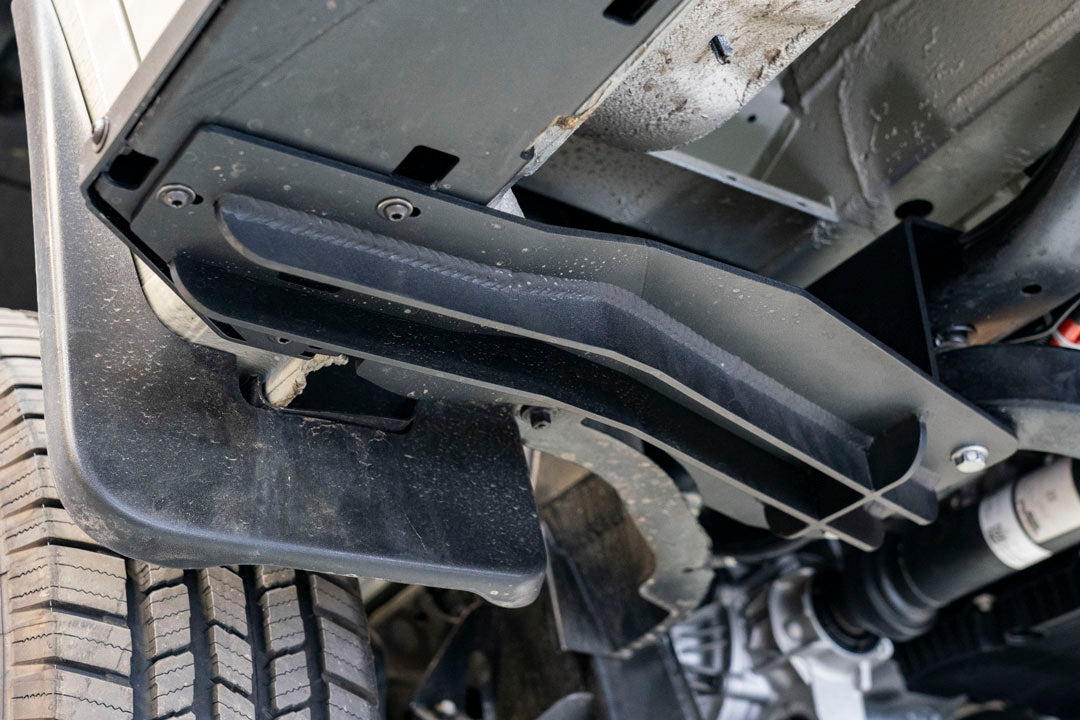

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation. Does not fit vans with a 2" Van Compass Striker lift installed.

Step Surface Width: 3.5-4" (van body has slight taper at front door sill)

*** These ship in a very long crate, non-commercial address may be subject to additional delivery fees. ***

Videos

View full details

Collapsible content

INCLUDED COMPONENTS

  • 3/16" Steel - Front, Middle and Rear Frame Mounts - Matte Black Textured Powder Coat Finish
  • 1/8" Steel - Steps - Matte Black Textured Powder Coat Finish
  • Stainless Steel Mounting Hardware, coated with AL2000 black finish for a stealth look

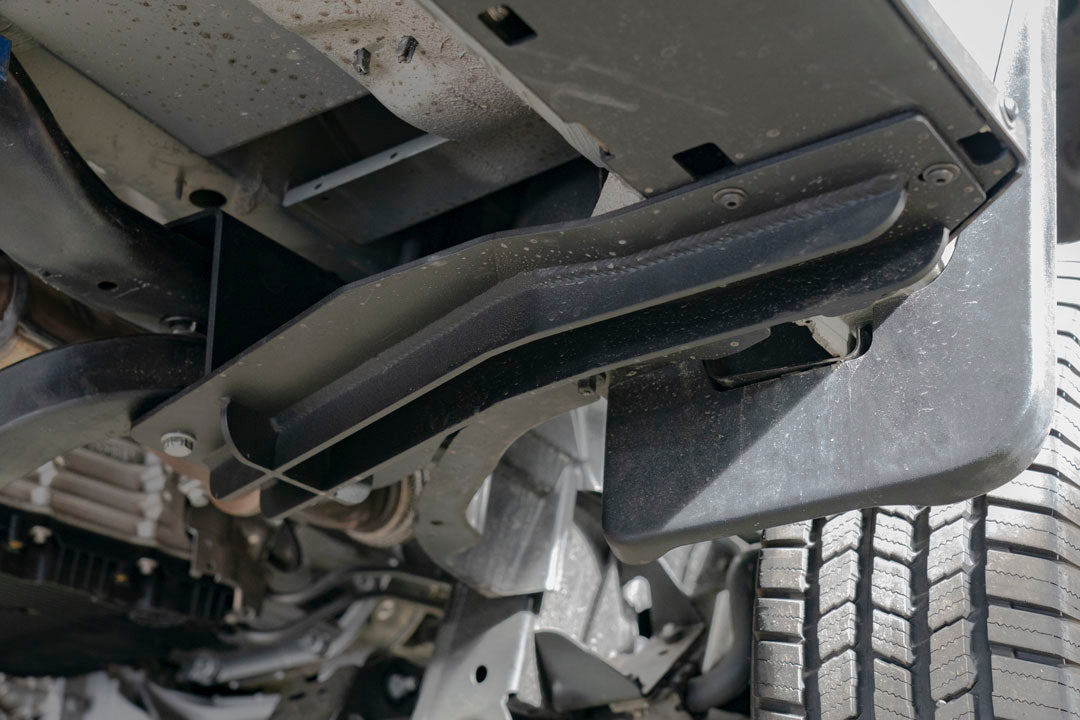

  • Front subframe tie in mounts are specific to lift height, please choose the correct lift height when ordering.

FITMENT GUIDE

MODEL: SPRINTER 2500 and 3500

YEAR: 2023-PRESENT

DRIVE TYPE: AWD

NOTE: Not compatible with 2" Van Compass Striker lift.

NOTE: May be installed on a 2WD when equipped with a Striker lift kit. Select non-lifted AWD height sliders.

NOTE: Not compatible with Storyteller MODE or Winnebago Revel

INSTRUCTIONS

2023+ Sprinter rocker guard installation instructions:

LABOR TIMES

Recommended Shop Labor Time: 6 Hours
