STAGE 3 TOPO 2.0 SYSTEM - TRANSIT RWD (2013+ SINGLE REAR WHEEL) by VAN COMPASS

Stage 3 System Benefits:

• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 2.1 Monotube Shocks

• Increased rear spring rate fights sag
• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

Intended Use:

• Entry level kit for heavier vans experiencing rear sagging

• Passenger vans that want a more aggressive stance

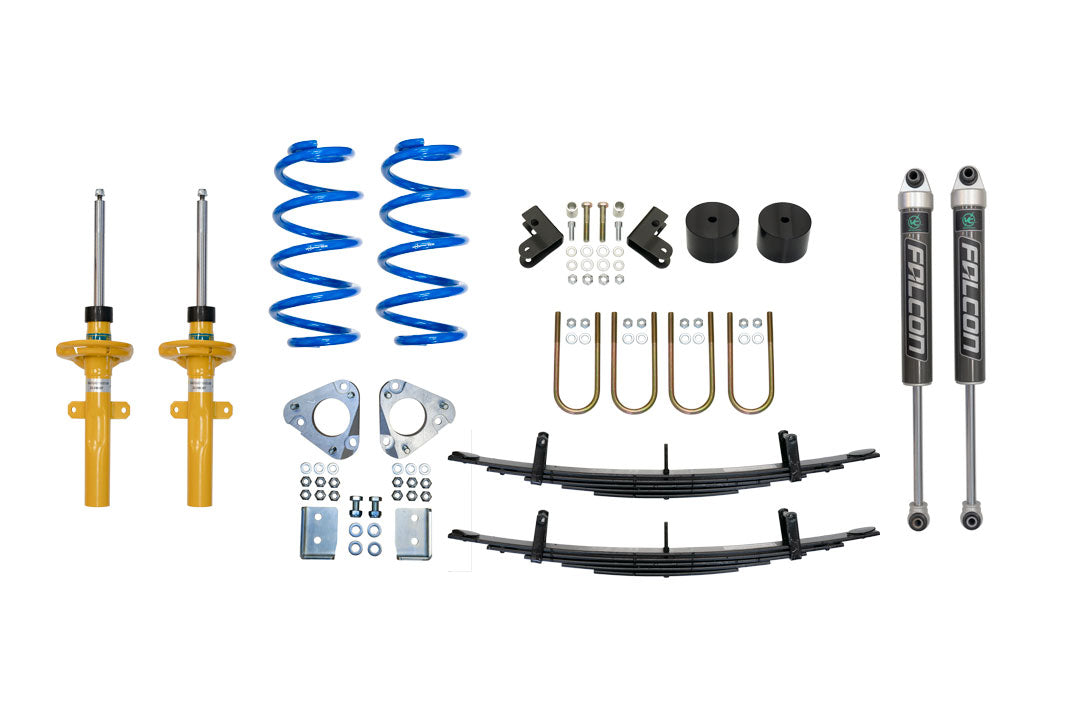

Improve the ride quality and stance of your Ford Transit RWD with the Stage 3 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the 2020+ AWD Transit platform.

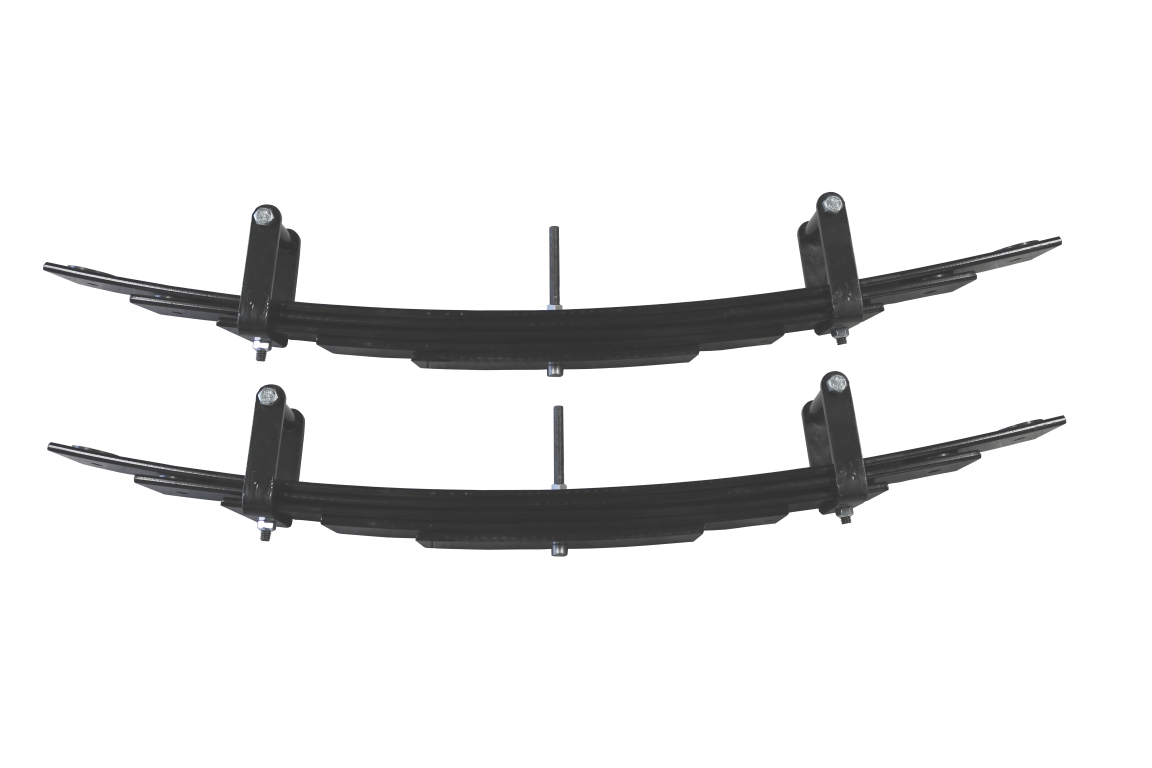

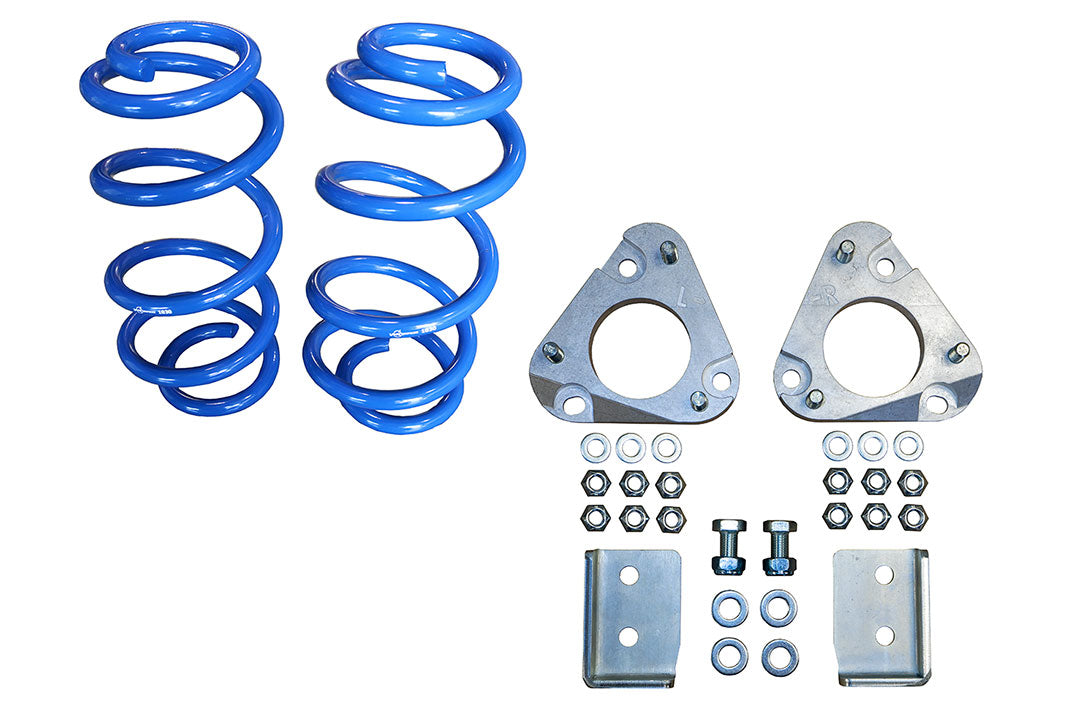

Our Topo 2" lift kit includes a precision engineered 0.75" lift camber correction plate, with a tuned coil spring. By engineering the spring length and rate to our specifications we gain 1.25" of lift, with a corresponding increase in compression travel. A 5 leaf mini pack works in conjunction with the factory leaf pack to provide a 10-15% spring rate increase in the rear while lifting the back of the van anywhere from 2.0" to 2.5" depending on vehicle weight. Friction reducing tips on our leaves ensure a smooth, quiet ride. Included rear shock relocation brackets allow for the low hanging factory brackets to be trimmed, resulting in better overall ground clearance under the axle tube.

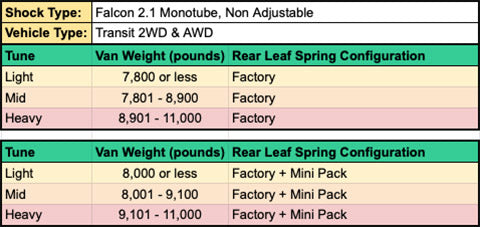

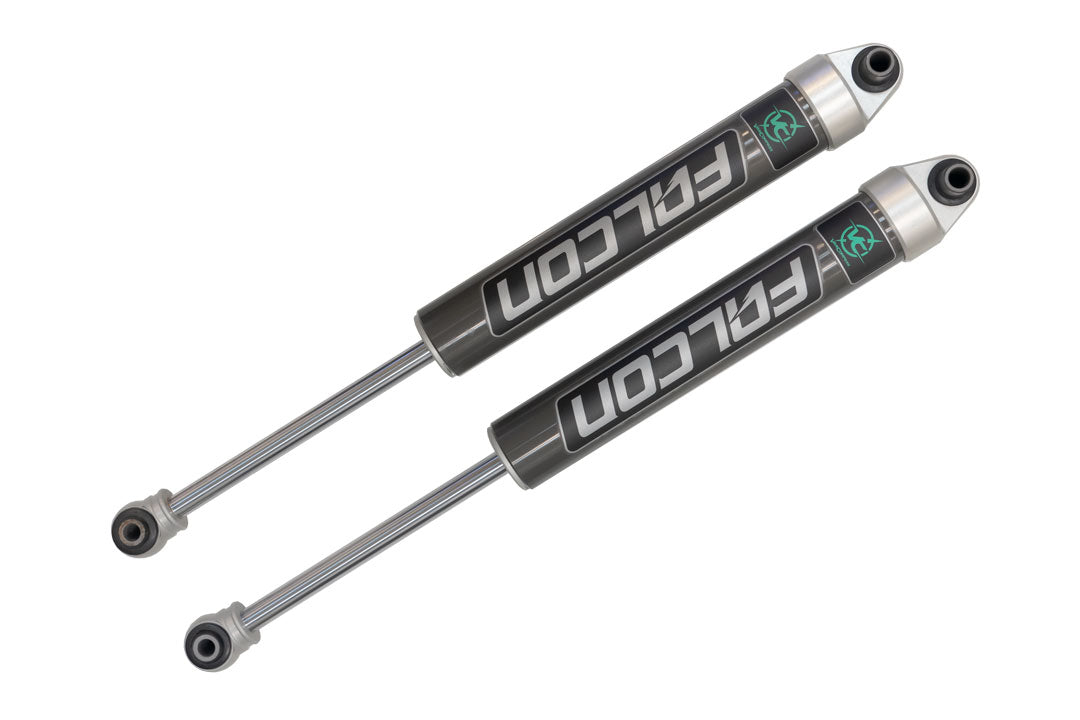

Falcon 2.1 Monotube Shocks dramatically improve handling. With superior construction and a larger, more effective damper piston, these shocks will completely change the driving dynamic of your van. A more effective damper reduces leaning in corners, violent swaying, and smooths out jarring impacts.

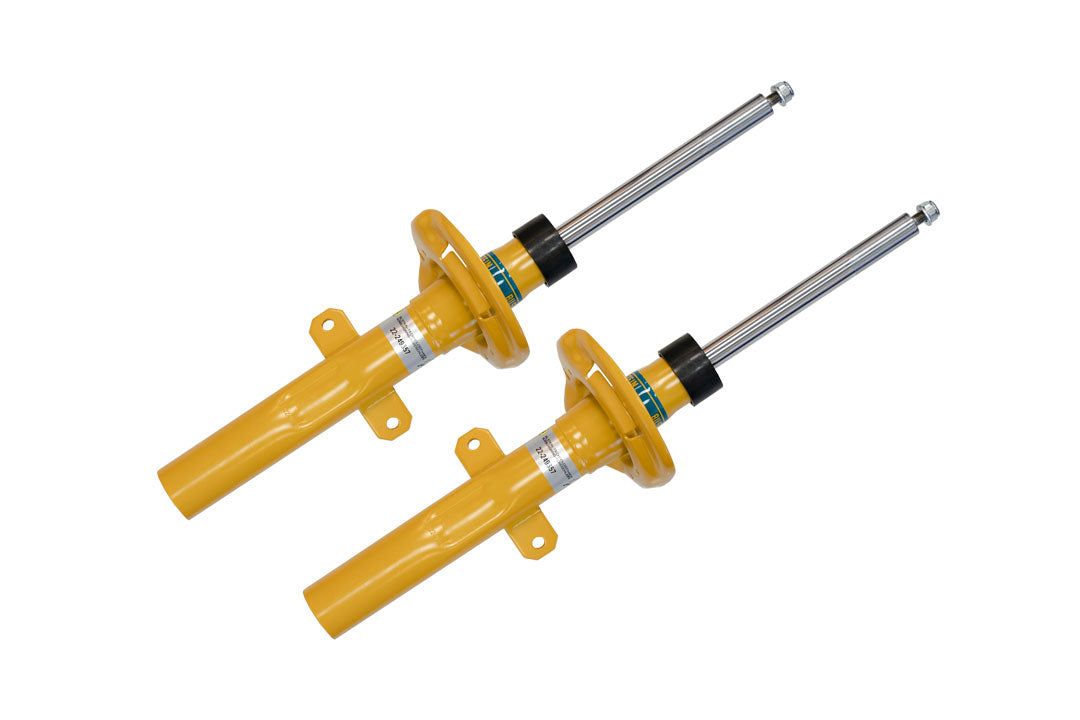

The RWD specific Topo systems include Bilstein B6 front struts to increase damping and further improve handling.
