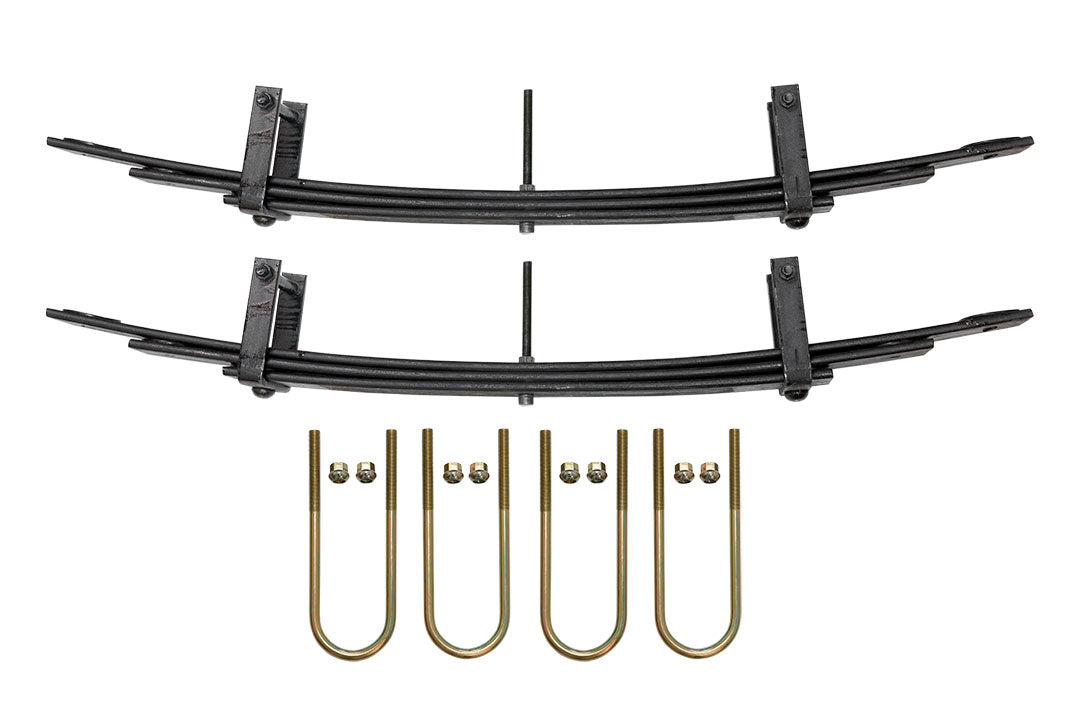

• Rear Mini Spring Pack for Sprinter 4x4 (2015+ 2500) by VAN COMPASS, featuring a black curved metal structure with gold parts, enhancing ride quality and stability.
  • REAR MINI SPRING PACK - SPRINTER 4x4 (2015+ 2500 ONLY) by VAN COMPASS, showing a close-up of the wheel, brake disc, and metal components.
  • REAR MINI SPRING PACK - SPRINTER 4x4 (2015+ 2500 ONLY) by VAN COMPASS, showcasing a close-up of metal bolts and springs designed to improve vehicle stability and ride quality.
  • REAR MINI SPRING PACK - SPRINTER 4x4 (2015+ 2500 ONLY) by VAN COMPASS, enhancing ride quality by installing under factory leaf springs to increase height and stability.
  • Close-up of the REAR MINI SPRING PACK for Sprinter 4x4 (2015+ 2500) by VAN COMPASS, installed under factory leaf springs to enhance ride quality and stability.
1 5

REAR MINI SPRING PACK - SPRINTER 4x4/AWD (2015+ 2500 ONLY) by VAN COMPASS

REAR MINI SPRING PACK - SPRINTER 4x4/AWD (2015+ 2500 ONLY) by VAN COMPASS

3016-043

$ 705.95 USD
$ 705.95 USD
Sale Sold out
Shipping calculated at checkout.

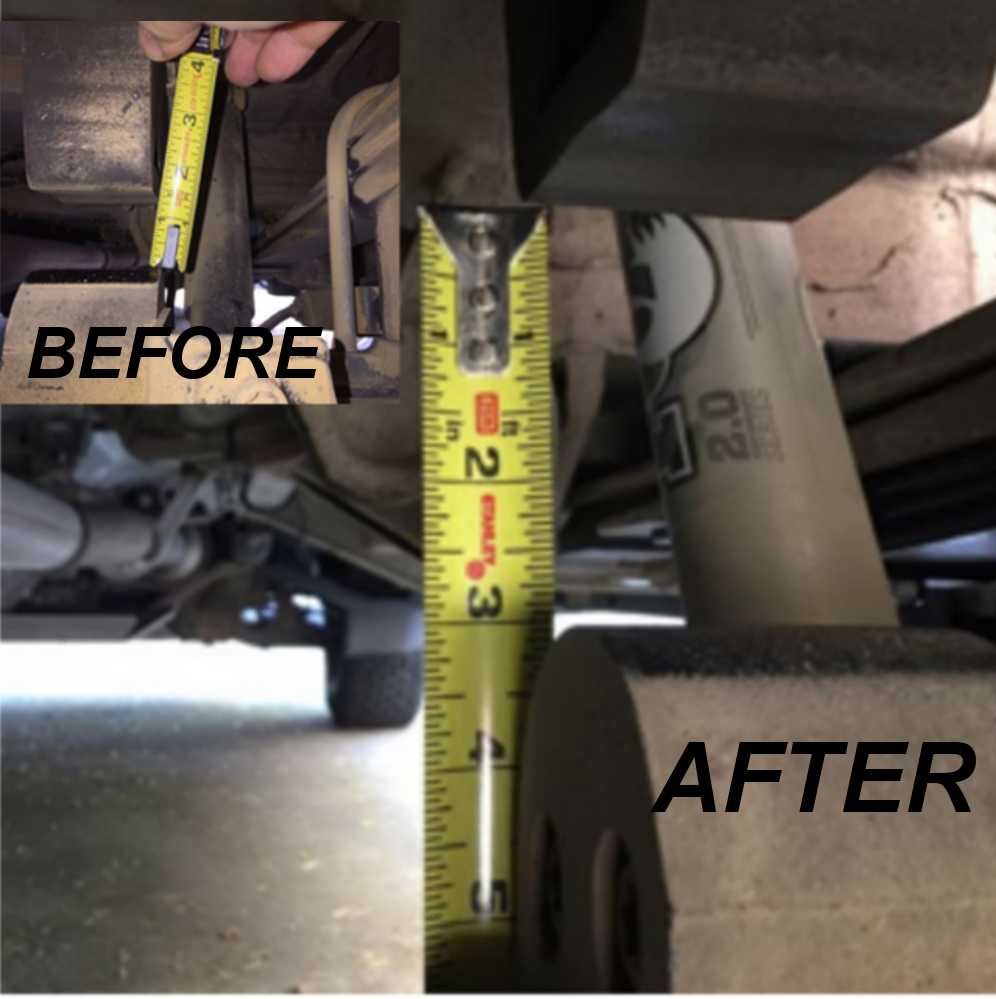

As a vehicle approaches its GVWR (Gross Vehicle Weight Rating), the rear suspension will naturally begin to sag and ride quality will begin to suffer. The Sprinter van is no different. Our 3-leaf Sprinter 4x4 mini leaf spring pack installs under the factory leaf springs and can increase ride height from 1" to 1.5" (25mm to 33mm) depending on the vehicle's weight distribution. The increase in spring rate gained by this leaf pack along with the additional clearance between the bumpstop and axle will reduce the chances of bottoming out enhance vehicle stability, ride comfort and restore the factory look of the van. This product is designed to improve ride and handling while at or near GVWR, however we do not recommend exceeding the manufacturer's GVWR.

*Compatible on 4wd vans that have a factory 2-leaf spring pack. Not compatible with the factory 'mono leaf' or the 3500 spring pack with a third 'overload' spring.

View full details

INCLUDED COMPONENTS

  • Van Compass mini leaf pack (pair)
  • U-bolts and nuts for installation

FITMENT GUIDE

MODEL: SPRINTER 2500

YEAR: 2015-PRESENT

DRIVE TYPE: 4X4, AWD

INSTRUCTIONS

Sprinter mini spring pack installation instructions:

LABOR TIMES

Recommended Shop Labor Time: 3 Hours
